Miniature LEDs
LED Categories > Automotive LEDs
Solid State, Based LED Lamps

1157 LED (BAY15D) Base - 1156 LED (BA15S) Base - 4 Cluster Festoon - 8 Cluster Festoon

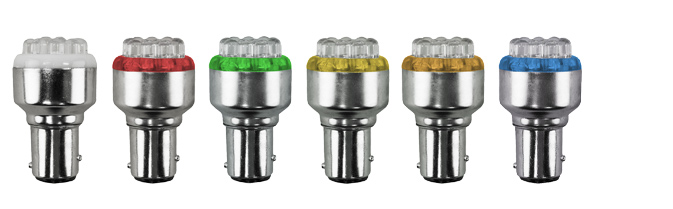

1157 LED (BAY15D)

  • 100,000 Life Hours
  • Ultra-Bright Output
  • 120° Viewing
  • 12 LED Cluster

Cross Reference Guide

Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-1157-W 12V 160 2.0 47mm L x 26mm D White green-color 12,000 120° 1157 Incandescent
LED-1157-R 12V 160 2.0 47mm L x 26mm D Red green-color 12,000 120° 1157 Incandescent
LED-1157-G 12V 160 2.0 47mm L x 26mm D Green green-color 12,000 120° 1157 Incandescent
LED-1157-Y 12V 160 2.0 47mm L x 26mm D Yellow green-color 12,000 120° 1157 Incandescent
LED-1157-A 12V 160 2.0 47mm L x 26mm D Amber green-color 12,000 120° 1157 Incandescent
LED-1157-B 12V 160 2.0 47mm L x 26mm D Blue green-color 12,000 120° 1157 Incandescent
Back to Top

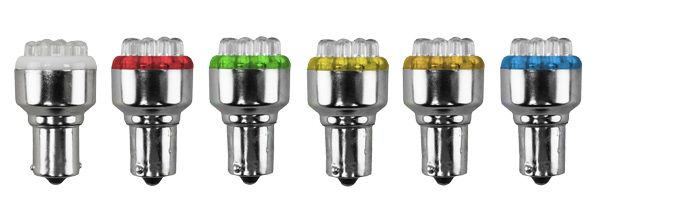

1156 LED (BA15S)

  • 100,000 Life Hours
  • Ultra-Bright Output
  • 120° Viewing
  • 12 LED Cluster

Cross Reference Guide

Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-1156-W 12V 160 2.0 47mm L x 26mm D White green-color 12,000 120° 1156 Incandescent
LED-1156-R 12V 160 2.0 47mm L x 26mm D Red green-color 12,000 120° 1156 Incandescent
LED-1156-G 12V 160 2.0 47mm L x 26mm D Green green-color 12,000 120° 1156 Incandescent
LED-1156-Y 12V 160 2.0 47mm L x 26mm D Yellow green-color 12,000 120° 1156 Incandescent
LED-1156-A 12V 160 2.0 47mm L x 26mm D Amber green-color 12,000 120° 1156 Incandescent
LED-1156-B 12V 160 2.0 47mm L x 26mm D Blue green-color 12,000 120° 1156 Incandescent
Back to Top

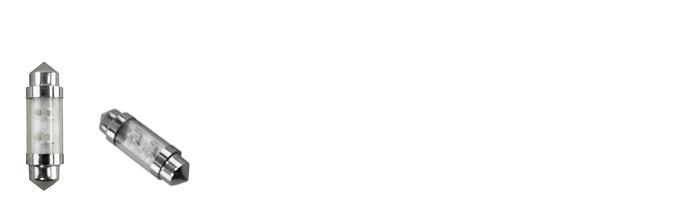

4 Cluster Festoon

  • 100,000 Life Hours
  • Ultra-Bright Output
  • 120° Viewing
  • 4 LED Cluster

Cross Reference Guide

Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
FC1036-12V-W 12V 80 1.0 36mm L x 10mm D White green-color 2,000 120° Incandescent Festoon
FC1036-12V-R 12V 80 1.0 36mm L x 10mm D Red green-color 2,000 120° Incandescent Festoon
FC1036-12V-G 12V 80 1.0 36mm L x 10mm D Green green-color 2,000 120° Incandescent Festoon
FC1036-12V-Y 12V 80 1.0 36mm L x 10mm D Yellow green-color 2,000 120° Incandescent Festoon
FC1036-12V-A 12V 80 1.0 36mm L x 10mm D Amber green-color 2,000 120° Incandescent Festoon
FC1036-12V-B 12V 80 1.0 36mm L x 10mm D Blue green-color 2,000 120° Incandescent Festoon

FC1036-24V-W 24V 40 1.0 36mm L x 10mm D White green-color 2,000 120° Incandescent Festoon
FC1036-24V-R 24V 40 1.0 36mm L x 10mm D Red green-color 2,000 120° Incandescent Festoon
FC1036-24V-G 24V 40 1.0 36mm L x 10mm D Green green-color 2,000 120° Incandescent Festoon
FC1036-24V-Y 24V 40 1.0 36mm L x 10mm D Yellow green-color 2,000 120° Incandescent Festoon
FC1036-24V-A 24V 40 1.0 36mm L x 10mm D Amber green-color 2,000 120° Incandescent Festoon
FC1036-24V-B 24V 40 1.0 36mm L x 10mm D Blue green-color 2,000 120° Incandescent Festoon
Back to Top

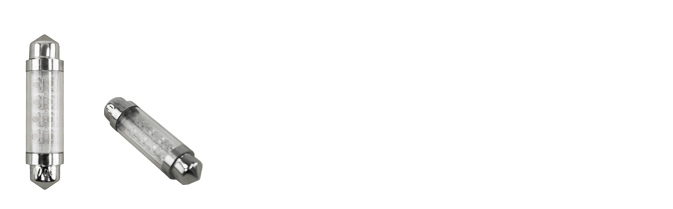

8 Cluster Festoon

  • 100,000 Life Hours
  • Ultra-Bright Output
  • 120° Viewing
  • 8 LED Cluster

Cross Reference Guide

Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
FC1142-12V-W 12V 150 1.8 42mm L x 11mm D White green-color 4,000 120° Incandescent Festoon
FC1142-12V-R 12V 150 1.8 42mm L x 11mm D Red green-color 4,000 120° Incandescent Festoon
FC1142-12V-G 12V 150 1.8 42mm L x 11mm D Green green-color 4,000 120° Incandescent Festoon
FC1142-12V-Y 12V 150 1.8 42mm L x 11mm D Yellow green-color 4,000 120° Incandescent Festoon
FC1142-12V-A 12V 150 1.8 42mm L x 11mm D Amber green-color 4,000 120° Incandescent Festoon
FC1142-12V-B 12V 150 1.8 42mm L x 11mm D Blue green-color 4,000 120° Incandescent Festoon

FC1142-24V-W 24V 75 1.8 42mm L x 11mm D White green-color 4,000 120° Incandescent Festoon
FC1142-24V-R 24V 75 1.8 42mm L x 11mm D Red green-color 4,000 120° Incandescent Festoon
FC1142-24V-G 24V 75 1.8 42mm L x 11mm D Green green-color 4,000 120° Incandescent Festoon
FC1142-24V-Y 24V 75 1.8 42mm L x 11mm D Yellow green-color 4,000 120° Incandescent Festoon
FC1142-24V-A 24V 75 1.8 42mm L x 11mm D Amber green-color 4,000 120° Incandescent Festoon
FC1142-24V-B 24V 75 1.8 42mm L x 11mm D Blue green-color 4,000 120° Incandescent Festoon
Back to Top
