Norman Lamps, Inc.
Miniature LEDs
LED Categories > T-1 3/4 (5mm) LEDs
Solid State, Midget Based LED Lamps

Grooved Base - Flanged Based - Bi-Pin Based - Wedge Based

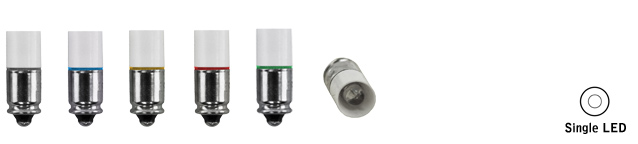

Grooved Based

  • T-1 3/4 (5mm)
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Chip Diode

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED6MGWW-DC 6V 80 0.50 15.7mm L x 5mm D White green-color 500 120° Grooved Based Bulb
LED6MGR-DC 6V 80 0.50 15.7mm L x 5mm D Red green-color 500 120° Grooved Based Bulb
LED6MGG-DC 6V 80 0.50 15.7mm L x 5mm D Green green-color 500 120° Grooved Based Bulb
LED6MGY-DC 6V 80 0.50 15.7mm L x 5mm D Yellow green-color 500 120° Grooved Based Bulb
LED6MGA-DC 6V 80 0.50 15.7mm L x 5mm D Amber green-color 500 120° Grooved Based Bulb
LED6MGB-DC 6V 80 0.50 15.7mm L x 5mm D Blue green-color 500 120° Grooved Based Bulb

LED12MGWW-DC 12V 50 0.50 15.7mm L x 5mm D White green-color 500 120° Grooved Based Bulb
LED12MGR-DC 12V 50 0.50 15.7mm L x 5mm D Red green-color 500 120° Grooved Based Bulb
LED12MGG-DC 12V 50 0.50 15.7mm L x 5mm D Green green-color 500 120° Grooved Based Bulb
LED12MGY-DC 12V 50 0.50 15.7mm L x 5mm D Yellow green-color 500 120° Grooved Based Bulb
LED12MGA-DC 12V 50 0.50 15.7mm L x 5mm D Amber green-color 500 120° Grooved Based Bulb
LED12MGB-DC 12V 50 0.50 15.7mm L x 5mm D Blue green-color 500 120° Grooved Based Bulb

LED28MGWW-DC 28V 20 0.50 15.7mm L x 5mm D White green-color 500 120° Grooved Based Bulb
LED28MGR-DC 28V 20 0.50 15.7mm L x 5mm D Red green-color 500 120° Grooved Based Bulb
LED28MGG-DC 28V 20 0.50 15.7mm L x 5mm D Green green-color 500 120° Grooved Based Bulb
LED28MGY-DC 28V 20 0.50 15.7mm L x 5mm D Yellow green-color 500 120° Grooved Based Bulb
LED28MGA-DC 28V 20 0.50 15.7mm L x 5mm D Amber green-color 500 120° Grooved Based Bulb
LED28MGB-DC 28V 20 0.50 15.7mm L x 5mm D Blue green-color 500 120° Grooved Based Bulb
Back to Top

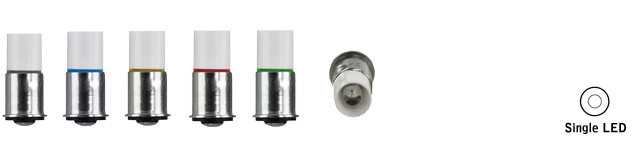

Flanged Based

  • T-1 3/4 (5mm)
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Chip Diode

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED6MFWW-DC 6V 80 0.50 15.3mm L x 5mm D White green-color 500 120° Flanged Based Bulb
LED6MFR-DC 6V 80 0.50 15.3mm L x 5mm D Red green-color 500 120° Flanged Based Bulb
LED6MFG-DC 6V 80 0.50 15.3mm L x 5mm D Green green-color 500 120° Flanged Based Bulb
LED6MFY-DC 6V 80 0.50 15.3mm L x 5mm D Yellow green-color 500 120° Flanged Based Bulb
LED6MFA-DC 6V 80 0.50 15.3mm L x 5mm D Amber green-color 500 120° Flanged Based Bulb
LED6MFB-DC 6V 80 0.50 15.3mm L x 5mm D Blue green-color 500 120° Flanged Based Bulb

LED12MFWW-DC 12V 50 0.50 15.3mm L x 5mm D White green-color 500 120° Flanged Based Bulb
LED12MFR-DC 12V 50 0.50 15.3mm L x 5mm D Red green-color 500 120° Flanged Based Bulb
LED12MFG-DC 12V 50 0.50 15.3mm L x 5mm D Green green-color 500 120° Flanged Based Bulb
LED12MFY-DC 12V 50 0.50 15.3mm L x 5mm D Yellow green-color 500 120° Flanged Based Bulb
LED12MFA-DC 12V 50 0.50 15.3mm L x 5mm D Amber green-color 500 120° Flanged Based Bulb
LED12MFB-DC 12V 50 0.50 15.3mm L x 5mm D Blue green-color 500 120° Flanged Based Bulb

LED28MFWW-DC 28V 20 0.50 15.3mm L x 5mm D White green-color 500 120° Flanged Based Bulb
LED28MFR-DC 28V 20 0.50 15.3mm L x 5mm D Red green-color 500 120° Flanged Based Bulb
LED28MFG-DC 28V 20 0.50 15.3mm L x 5mm D Green green-color 500 120° Flanged Based Bulb
LED28MFY-DC 28V 20 0.50 15.3mm L x 5mm D Yellow green-color 500 120° Flanged Based Bulb
LED28MFA-DC 28V 20 0.50 15.3mm L x 5mm D Amber green-color 500 120° Flanged Based Bulb
LED28MFB-DC 28V 20 0.50 15.3mm L x 5mm D Blue green-color 500 120° Flanged Based Bulb
Back to Top

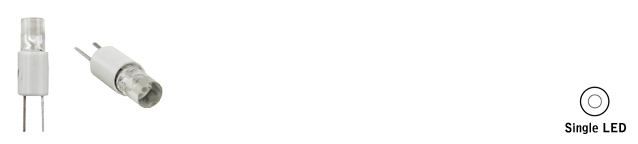

Bi-pin Based

  • T-1 3/4 (5mm)
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Chip Diode

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED6BPWW-DC 6V 80 0.50 20.6mm L x 5mm D White green-color 500 120° Bi-pin Based Bulb
LED6BPR-DC 6V 80 0.50 20.6mm L x 5mm D Red green-color 500 120° Bi-pin Based Bulb
LED6BPG-DC 6V 80 0.50 20.6mm L x 5mm D Green green-color 500 120° Bi-pin Based Bulb
LED6BPY-DC 6V 80 0.50 20.6mm L x 5mm D Yellow green-color 500 120° Bi-pin Based Bulb
LED6BPA-DC 6V 80 0.50 20.6mm L x 5mm D Amber green-color 500 120° Bi-pin Based Bulb
LED6BPB-DC 6V 80 0.50 20.6mm L x 5mm D Blue green-color 500 120° Bi-pin Based Bulb

LED12BPWW-DC 12V 50 0.50 20.6mm L x 5mm D White green-color 500 120° Bi-pin Based Bulb
LED12BPR-DC 12V 50 0.50 20.6mm L x 5mm D Red green-color 500 120° Bi-pin Based Bulb
LED12BPG-DC 12V 50 0.50 20.6mm L x 5mm D Green green-color 500 120° Bi-pin Based Bulb
LED12BPY-DC 12V 50 0.50 20.6mm L x 5mm D Yellow green-color 500 120° Bi-pin Based Bulb
LED12BPA-DC 12V 50 0.50 20.6mm L x 5mm D Amber green-color 500 120° Bi-pin Based Bulb
LED12BPB-DC 12V 50 0.50 20.6mm L x 5mm D Blue green-color 500 120° Bi-pin Based Bulb

LED28BPWW-DC 28V 20 0.50 20.6mm L x 5mm D White green-color 500 120° Bi-pin Based Bulb
LED28BPR-DC 28V 20 0.50 20.6mm L x 5mm D Red green-color 500 120° Bi-pin Based Bulb
LED28BPG-DC 28V 20 0.50 20.6mm L x 5mm D Green green-color 500 120° Bi-pin Based Bulb
LED28BPY-DC 28V 20 0.50 20.6mm L x 5mm D Yellow green-color 500 120° Bi-pin Based Bulb
LED28BPA-DC 28V 20 0.50 20.6mm L x 5mm D Amber green-color 500 120° Bi-pin Based Bulb
LED28BPB-DC 28V 20 0.50 20.6mm L x 5mm D Blue green-color 500 120° Bi-pin Based Bulb
Back to Top

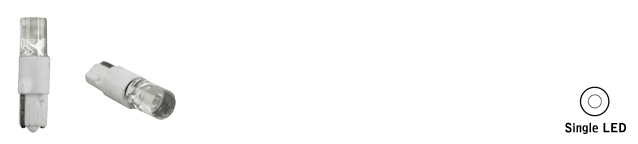

Wedge Based

  • T-1 3/4 (5mm)
  • 100,000 Life Hours
  • Ultra-Bright Output
  • Single Chip Diode

Cross Reference Guide
Part Number (#): Voltage (V): Current (mA): Wattage (W): Dimensions: Emitted Color: Output (mcd): Viewing Angle: Replaces:
LED-86-White 6V 80 0.50 18.5mm L x 5mm D White green-color 500 120° Incandescent 86 Bulb
LED-86-Red 6V 80 0.50 18.5mm L x 5mm D Red green-color 500 120° Incandescent 86 Bulb
LED-86-Green 6V 80 0.50 18.5mm L x 5mm D Green green-color 500 120° Incandescent 86 Bulb
LED-86-Yellow 6V 80 0.50 18.5mm L x 5mm D Yellow green-color 500 120° Incandescent 86 Bulb
LED-86-Amber 6V 80 0.50 18.5mm L x 5mm D Amber green-color 500 120° Incandescent 86 Bulb
LED-86-Blue 6V 80 0.50 18.5mm L x 5mm D Blue green-color 500 120° Incandescent 86 Bulb

LED-73-White 12V 50 0.50 18.5mm L x 5mm D White green-color 500 120° Incandescent 73 Bulb
LED-73-Red 12V 50 0.50 18.5mm L x 5mm D Red green-color 500 120° Incandescent 73 Bulb
LED-73-Green 12V 50 0.50 18.5mm L x 5mm D Green green-color 500 120° Incandescent 73 Bulb
LED-73-Yellow 12V 50 0.50 18.5mm L x 5mm D Yellow green-color 500 120° Incandescent 73 Bulb
LED-73-Amber 12V 50 0.50 18.5mm L x 5mm D Amber green-color 500 120° Incandescent 73 Bulb
LED-73-Blue 12V 50 0.50 18.5mm L x 5mm D Blue green-color 500 120° Incandescent 73 Bulb

LED-85-White 28V 20 0.50 18.5mm L x 5mm D White green-color 500 120° Incandescent 85 Bulb
LED-85-Red 28V 20 0.50 18.5mm L x 5mm D Red green-color 500 120° Incandescent 85 Bulb
LED-85-Green 28V 20 0.50 18.5mm L x 5mm D Green green-color 500 120° Incandescent 85 Bulb
LED-85-Yellow 28V 20 0.50 18.5mm L x 5mm D Yellow green-color 500 120° Incandescent 85 Bulb
LED-85-Amber 28V 20 0.50 18.5mm L x 5mm D Amber green-color 500 120° Incandescent 85 Bulb
LED-85-Blue 28V 20 0.50 18.5mm L x 5mm D Blue green-color 500 120° Incandescent 85 Bulb
Back to Top
